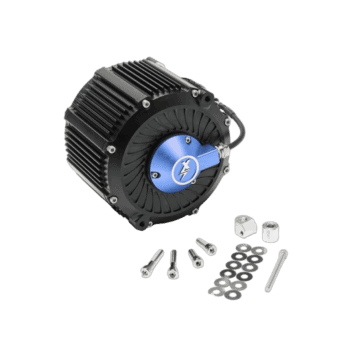

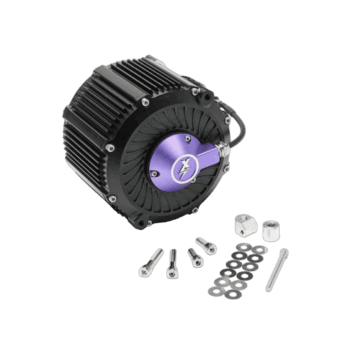

    EBMX XUB-80 Motor – Ultra Bee

    $999,94 – $1.971,93 + VAT ($1.199,93)

    The motor in an electric vehicle (EV) is the component that converts electrical energy from the battery into mechanical energy to drive the vehicle. It provides propulsion by generating torque, which turns the rear wheel.

    40KW rated & designed from the ground up to handle the heat, 180C rated windings with U42H magnets.

    Custom IPM rotor design and industry leading 1mm rotor air gap revving out to rated 12000RPM.

    Encoder based motor control for increased low end torque response and smooth predicable power delivery.

    We built these motors to stay cool under race conditions to ensure you focus on your riding and not your motor temperatures. It doesn’t matter if you are on the track, street or local trail, if you want the best, then this motor is for you.

    The EBMX motor range has been specifically designed to surpass the performance of other motors in their classes.

    Blue
    Purple
    Red
    Clear
    Compare
    SKU: N/A Categories: , , ,
    Description

    Code: MTR016

    PLU: 40107

    EAN: 5057645691259

    Peak Power: 40000W

    Voltage Range: 48v – 104v

    Max Torque: 65Nm

    Max Stable Rotor RPM: 12000RPM

    Motor Configuration: 10 Poles and 12 Slots

    Winding Type: Dual Y Parallel Connection

    Stator and Rotor Stack Thickness: 80mm

    Sensing Method: NJDC 605 Encoder

    Additional information
    Weight 15,10 kg
    Dimensions 20 × 10 × 20 cm
    Colour

    Blue

    ,

    Purple

    ,

    Red
    MPN MTR016
