AiM GPS09 Module for Smartycam HD

Capture. Replay. Overlay.

Full HD recording. Crystal Clear Video.  TFT Colour display. Automatic Start/Stop. Real-time overlay videos. Configurable. Choice of lens and can cable. Wave & Wobble eliminated. Waterproof.

Options:

67″ Degree lens with 2M 7-5 pin can cable ( SM-CAM-HD-2-X99SHD6707 )

67″ Degree lens with 4M 7-5 pin can cable ( SM-CAM-HD-X99SHD6706 )

84″ Degree lens with 2M 7-5 pin can cable ( SM-CAM-M-HD-2-X99SHD8407  )

84″ Degree lens with 4M 7-5 pin can cable ( SM-CAM-M-HD-X99SHD8406 )

120″ Degree lens with 2M 7-5 pin can cable ( SM-CAM-W-HD-2-X99SHD12007 )

120″ Degree lens with 4M 7-5 pin can cable ( -SM-CAM-W-HD-X99SHD12006 )

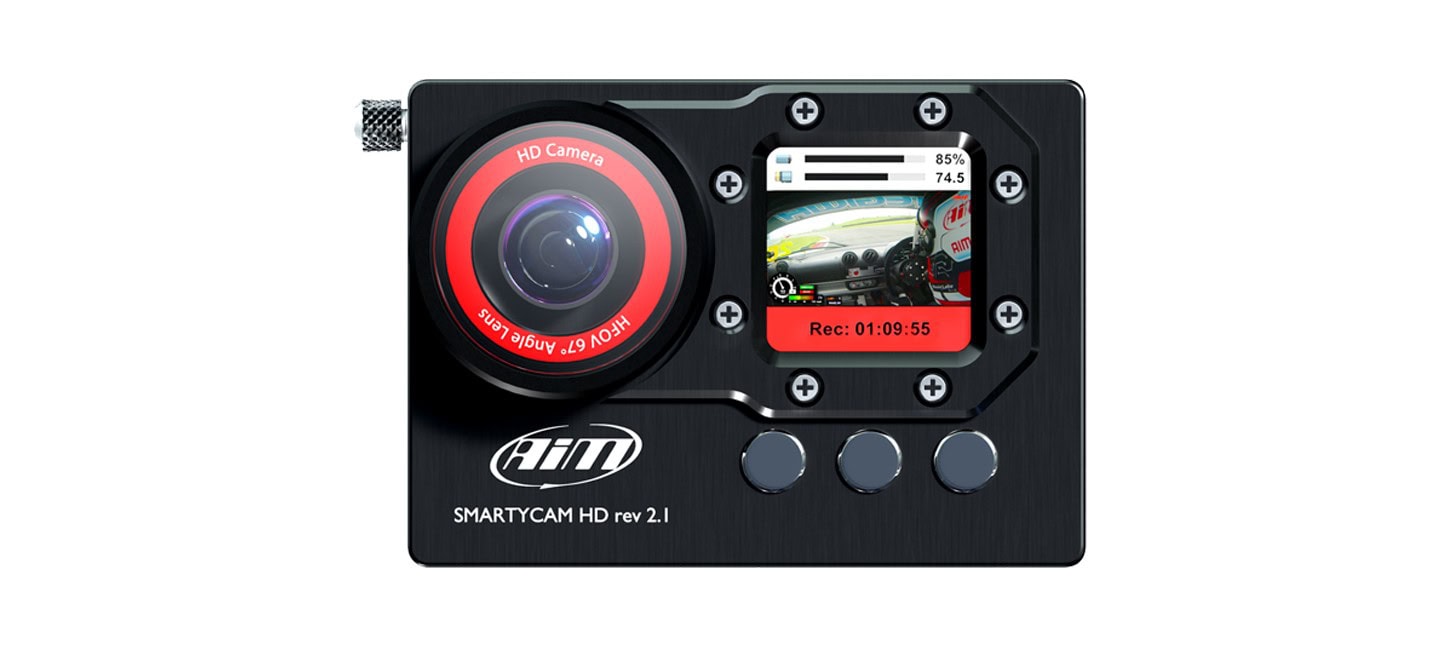

Smartycam HD, the AiM on board camera, has been developed using our extensive experience in data acquisition systems for motorsports. Don’t race without it.

Real-Time Overlay

The SmartyCam HD 2.1 automatically overlays on your video all the data you need, speed, RPM, lap number, gear shifts and much more. You can choose the graphical layout to suit your requirements by choosing from the many different overlays available.

You can analyse data from a large number of sources such as GPS track map and vehicle position and speed, lap and split times. AiM Loggers/Dash Loggers connected to your ECU: RPM, throttle, engaged gear, acceleration, temperatures, pressures and additional sensors attached to your Logger/Dash Logger.

CMOS Sensor & Lens

Unlike generic multipurpose cameras, SmartyCam HD has been designed to avoid image distortion, thanks to the innovative Global Shutter CMOS sensor. The camera shutter captures the entire image at the same time. Images are captured and not affected by vibrations.

The SmartyCam HD 2.1 is available with a choice of three lens options:
The narrow 67° HFOV lens, wide 84° HFOV lens, wide 120° HFOV lens.

Designed for extreme conditions

The SmartyCam HD will last and work under the pressure of extreme motorsport conditions such as poor weather, strong and prolonged vibrations, continuous rain and extreme high and low temperatures.

Automatic Start/Stop

When you’re at the starting grid, the last thing you want to be doing is setting up your camera. The SmartyCam HD has been designed with this in mind and switches on/off automatically, and starts/stops recording in the same way.

The logger can switch on the SmartyCam HD it is connected to. Switch-off is automatic too, you decide after what period of non-activity the camera will switch off.

Recording can also be started/stopped automatically or via the keyboard. With an automatic switch-on, the camera will start recording when the speed or RPM threshold is exceeded. In this case, you can decide how long after dropping below the selected point, the video will automatically stop.

Higher Storage Capacity

Using a compression system optimised to provide the perfect balance between video quality and file size. Video is stored on an SD card and you can select 3 different recording quality options: High quality, 1 hour = 4GB, Standard quality – 1 hour = 2GB, Low quality – 1 hour = 1.5GB. With a 128GB SD card, you can store over 32 hours of footage.

The USB port and SD card housing are 100% protected from air and weathering.
SD cards sold separately.

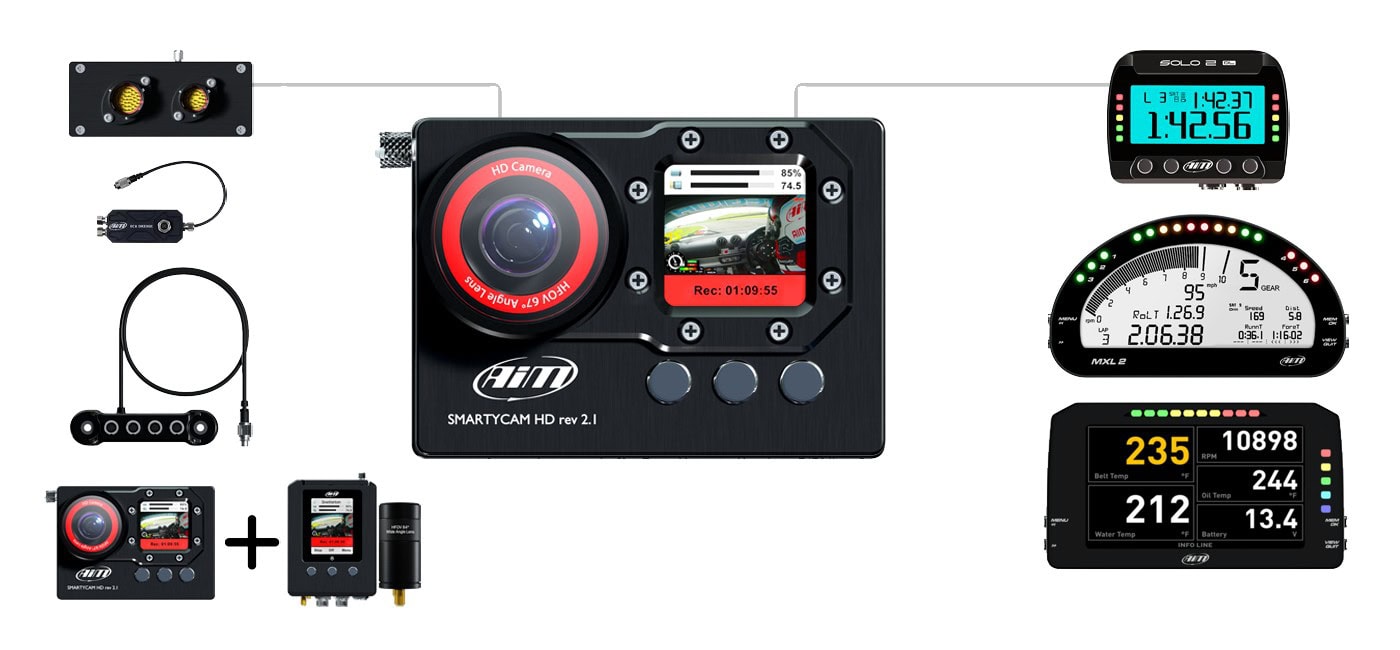

Expand your system

The SmartyCam HD 2.1 can be connected through the CAN network to our AiM Loggers, MX Series, MXL2, MyChron, Solo2 DL, EVO5 and ECU Bridge.

You can connect more SmartyCam HD cameras on the same CAN network. The SmartyCam has its configuration and automatically retrieves the data it needs from the network without interfering with the others. You can also synchronize your video and data with the Loggers using Race Studio 3 software.
