    AiM Data Hub – 4 CAN connection multiplier

    $95,23 + VAT ($114,28)

    • Five pins 712 male Binder
    • CAN connection
    • Four-way hub
    • Build a network

    Clear
    Compare
    SKU: N/A Category: Brand:
    Description

    AiM Four-Way Data Hub CAN Connection Multiplier

    The AiM four-way Data Hub provides a CAN channel and works as an interface between our AiM loggers and sensors.

    Four-Way Data Hub CAN Connection Multiplier

    The compact Data Hub provides four additional CAN channels and works as an interface between the AiM logger and its peripheral devices and accessories. Such as the LCU Lambda Controller, GPS Module, TC Hub (thermocouple multiplier), Memory key and SmartyCams.

    Using many devices can result in excessive wiring. Thanks to the data hub, it can eliminate all unnecessary wiring.

    The four-way Data Hub takes all the information you need to your logger with only one cable, minimizing wires overall.

    You can connect more Data Hubs to build a network. You can see it in the image below.

    You can use the four-way Data Hub with our MX series dashes and loggers powered by the vehicle’s 12V onboard battery supply.

    Our Data Hubs are also available in the following versions and are in the accessories tab.

    Two-way data hub with external power leads
    Two-way data hub

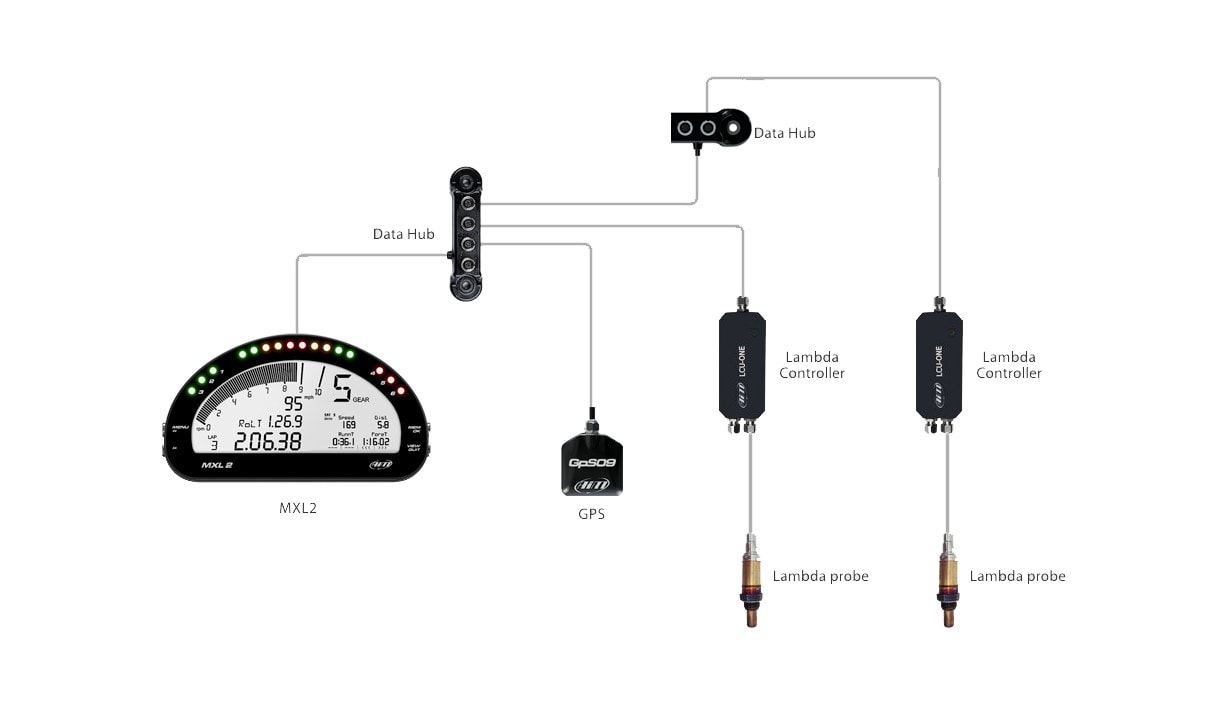

    AiM Four Way Data Hub CAN Connection Multiplier expand your system 3Connection Example

    These are some devices that can add extra data to your vehicle for incrementing performance and data.

    Additional information
    Weight N/A
    Dimensions N/A
    Cable

    40cm

    ,

    150cm
    Brand
